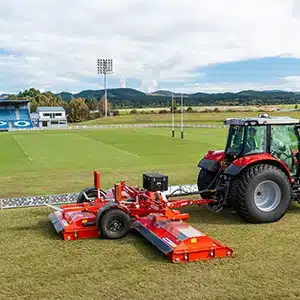

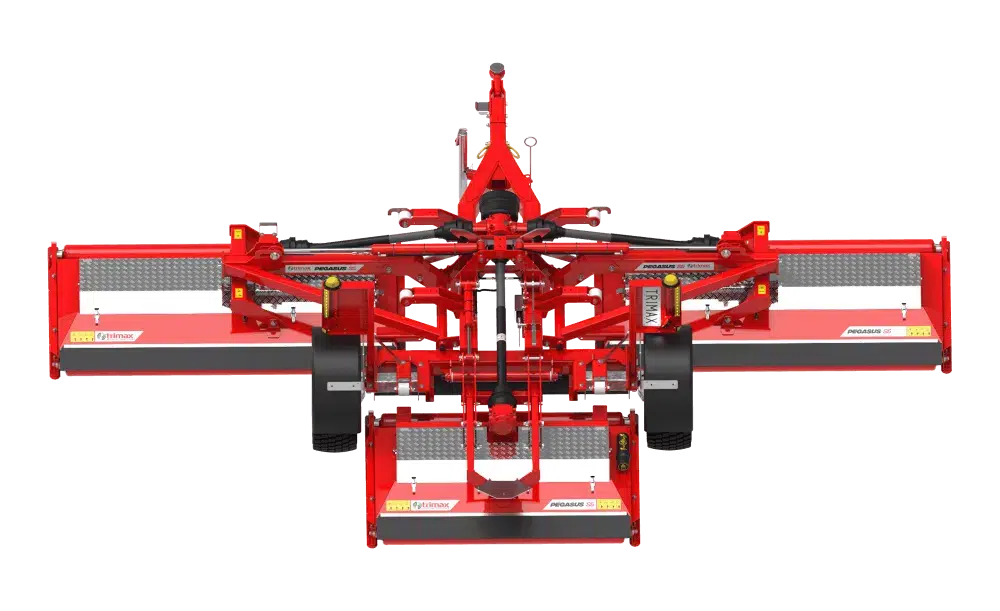

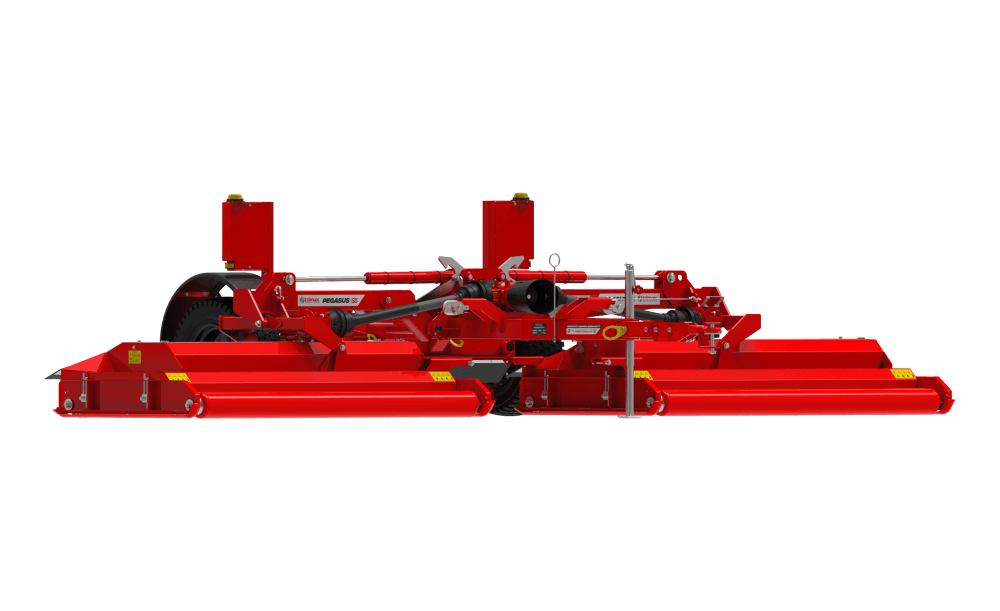

Pegasus ⁄⁄ S5
Since its introduction in 2001, the Trimax Pegasus has established itself as the benchmark in wide-area mowing for parks, reserves, airports, racecourses, sports fields, turf farms, and more. With the Trimax Pegasus S5, we take another leap forward.
STRONGER. SMARTER. SAFER.
The Trimax Pegasus S5 is second to none.
For over 20 years, the Trimax Pegasus has been leading the way in wide-area mowing. Introduced in 2001 as the world’s first multi-deck roller mower, the Pegasus is renowned for its robustness and versatility. Its fast spindle speeds and deep mowing decks deliver the highest quality cut and finish every time, and articulating decks provide a consistent cut over light to moderate contours.
The Pegasus S5 builds on the incredible strength, durability, versatility, and efficiency of the previous series to increase machine life and decrease downtime in full-time commercial applications.
Talk to us today about the capabilities of the Trimax Pegasus in your environment.
PEGASUS⁄⁄ S5 FEATURES.
The below features come as standard on all Pegasus S5 mowers:
LOW MAINTENANCE
With zero daily maintenance required, we’ve reduced grease points by 50% and annual grease consumption by 80%.
IMPACT PROTECTION
The outrigger arms and side channel leading edges have been redesigned for increased impact protection.
TITAN ROLLER BEARING SYSTEM
The Trimax Titan roller bearing is maintenance-free, requiring no regular greasing.
SUSPENSION
The new Pegasus S5 Flexiride Torque Suspension System is designed for increased strength and smoother travel at highway speeds.
ROBUST CHASSIS
The Pegasus S5 chassis has a brand-new design to increase strength while staying light on turf.
NEW LARGER WHEELS
Larger wheels help distribute the weight of the Pegasus S5 for 20% less ground pressure.
QUIKLIFT
Enables mower decks to be raised without disengaging the PTO to traverse driveways, paths and pavements.
PRECISE HEIGHT ADJUSTMENT
Clearly displayed indicators in both metric and imperial units and a high-tensile 2mm pitch adjuster for precise cut height alterations.
STEADFAST SPINDLES
Trimax SteadFast sealed spindles require no greasing or regular maintenance.
FULL WIDTH ROLLERS
Full width front and rear rollers follow contours and provide excellent anti-scalp protection.
AUTO BELT TENSIONING
Improves drive to the spindles without requiring manual belt adjustments.
WHEELS RUN ON CUT GRASS
The rear deck is located between the transport wheels so grass is not flattened prior to mowing.
LAZERBLADEZ
Achieves a superior cut and finish and are more cost efficient than cylinder reels or solid blade beams.
BELT CAVITY DUAL WASH FLAPS
Provides easy access for removal of grass and drainage of water from belt cavities.
3 YEAR WARRANTY
We build mowers that last and they’re supported with a 3 year industry leading warranty.
IN-CAB UNLOCK SYSTEM
Unlock the mower side decks’ transport lock from the convenience of the tractor seat using a release rope.
PEGASUS⁄⁄ S5 Options.
QUATTRO BLADE SYSTEM
Four blades (flat, upturned or mixed) per spindle for a finer cut.
NEXABLADES
Scientifically designed for high-end turf giving a superior cut and spread when it matters most.
STORAGE BOX
ROLLER SCRAPERS
Trimax Helical Scrapers operate with reduced tension but apply a constant pressure across the roller to assist with the cleaning of debris.
ELECTRIC UNLOCK
Replaces the standard in-cab transport lock release rope with an electric actuator. This is operated by a push-button remote.
TURF TYRES
Trimax turf tyres help distribute the weight of the mower for less ground disturbance. Recommended for turf/sod farms or fine turf applications. A mudguard option for turf tyres is also available.
SPARE ROAD TYRE & MOUNT
An easy and convenient mounting kit for attaching a spare road tyre to the mower. Spare tyres (road and turf tyres) without mounting kits are also available.
5 YEAR WARRANTY
For ultimate peace of mind, customers can increase the standard three-year warranty up to a five-year extended warranty.
ELEC BRAKES WITH BREAKAWAY
Electric Brakes reduce the braking force needed from the tractor and include an adjustable brake controller with a proportional boost for improved performance. Included is a breakaway system to comply with registration requirements.
ANTI-BOUNCE SKIDS
Ideal for high speed mowing, Anti-Bounce Skids reduce the ‘scalping’ effect when mowing on uneven turf. Helps to ease the mower over humps between the front and rear rollers.
MULTI-LIFT SYSTEM
The MultiLIFT System (MLS) is a combination of QuikLIFT and IndividualLIFT with the additional benefit of BiLIFT (rear deck-only mowing) for narrow gateways and driveways. Fitted with Drive Protect and timed blade spin-down for machinery protection and bystander safety.
SERVICE KIT
Full set of blades, bolts and belts for a quick routine service.
TRIMAX CONNECT
A free app available for Trimax Multi-Lift System customers. Allows bluetooth mower connection to track mow hours, manage key service activity or control MLS functionality.
TOOLBOX & MOUNT
Mounts a toolbox to the mower chassis.
OptiAdjust System
The Trimax OptiAdjust system lets operators adjust cutting heights from inside the tractor, boosting productivity, safety and cut quality.
SPECIFICATIONS.
|
Cutting Width |
4.94m (16′ 2″) |
No. of Blade Spindles |
9 |
|
Overall Width |
5.1m (16′ 9″) |
Approx. Weight |
2200kg (4895lbs) |
|

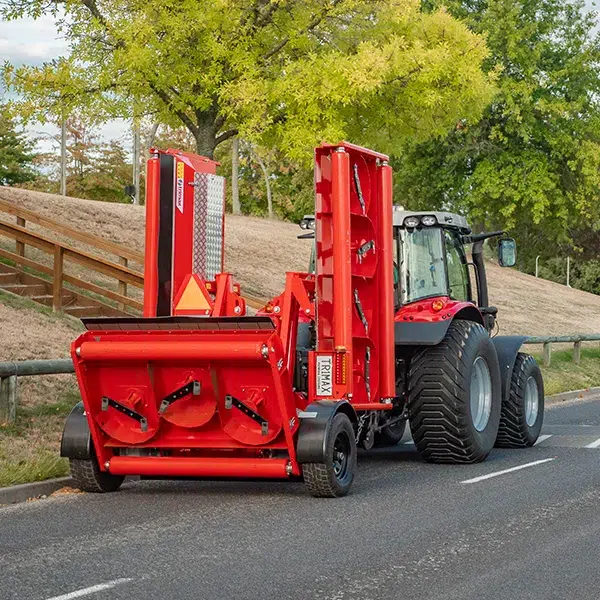

Width (Transport Mode) |
2.53m (8′ 3 3/4″) |
Minimum PTO Output * |
50 hp |
|
Overall Length |
4.65m (15′ 3″) |
Transport Height |
2.62m (8′ 7″) |
|
Cut Height Range |
10 – 110mm (3/8″ – 4 1/3″) |
Workrate (4mph) |
7.84 acres/hr |
|
Cutting Width |
6.09m (19′ 11″) |
No. of Blade Spindles |
11 |
|
Overall Width |
6.25m (20′ 6″) |
Approx. Weight |
2440 kg (5380 lbs) |
|
Width (Transport Mode) |
2.53m (8′ 3 3/4″) |
Minimum PTO Output * |
55 hp |
|
Overall Length |
4.65m (15′ 3″) |
Transport Height |
3.2m (10′ 6″) |
|
Cut Height Range |
10 – 110mm (3/8″ – 4 1/3″) |
Workrate (4mph) |
9.66 acres/hr |
|
Cutting Width |
7.23m (23′ 9″) |
No. of Blade Spindles |
13 |
|
Overall Width |
7.39m (24′ 3″) |
Approx. Weight |
2660kg (5865lbs) |
|
Width (Transport Mode) |
2.53m (8′ 3 3/4″) |
Minimum PTO Output * |
60 hp |
|
Overall Length |
4.65m (15′ 3″) |
Transport Height |
3.8m (12′ 6″) |
|
Cut Height Range |
10 – 110mm (3/8″ – 4 1/3″) |
Workrate (4mph) |
11.52 acres/hr |
