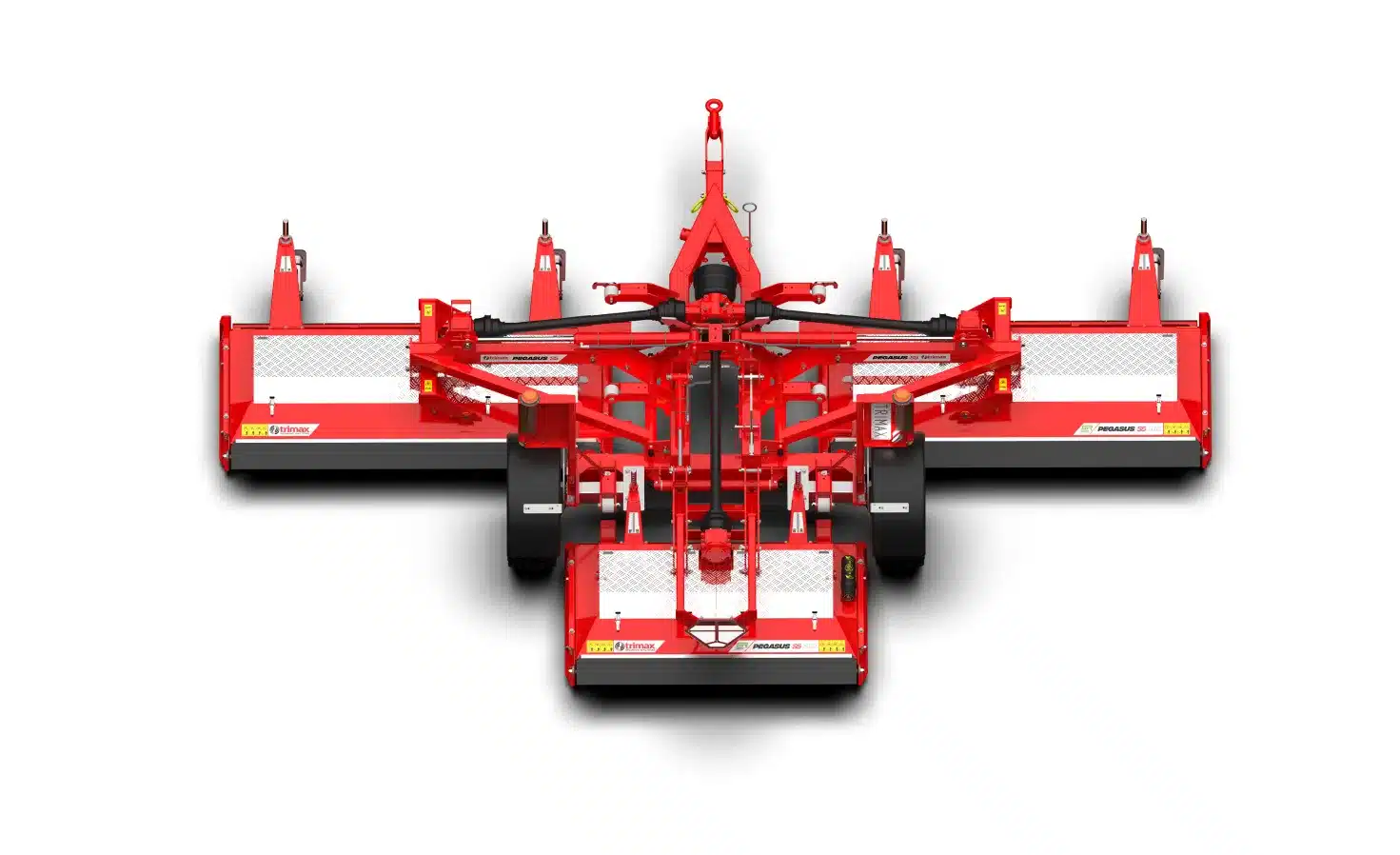

Pegasus⁄⁄ S5 SR
Since its introduction in 2001, the Trimax Pegasus series has established itself as the benchmark in wide-area mowing where cut quality and presentation are key. The Pegasus SR builds on the Pegasus’s legendary versatility and cut quality by taking its long grass performance to another level.
WIDE AREA, OPTIMAL LONG GRASS PERFORMANCE.

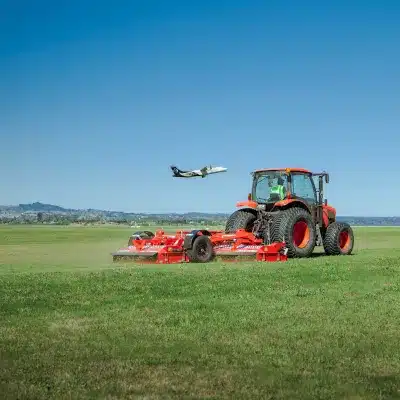

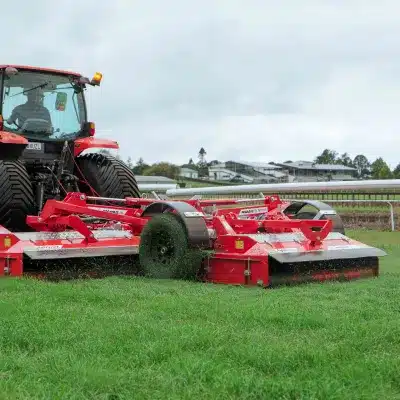

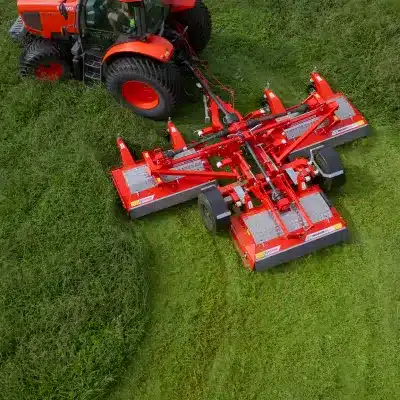

The Trimax Pegasus S5 SR is the optimal wide area mower for long grass applications.

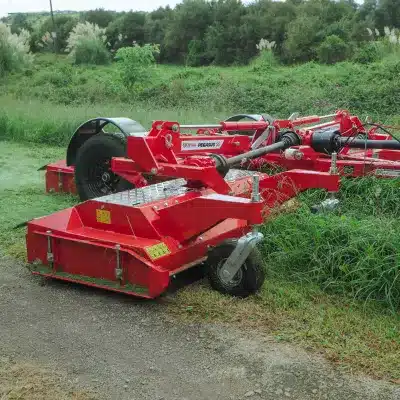

The Pegasus SR variant allows larger volumes of grass to enter the deck by replacing the front roller with castor wheels, allowing the mower to tackle long grass more effectively. Containing all the industry leading features included with the Pegasus S5, the Pegasus SR has a range of features that increase machine life, reduce maintenance, and decrease downtime in full-time commercial applications.
Built with industry leading strength and durability, the Pegasus SR is the machine you need for any commercial wide area long grass applications.
Talk to us today about the capabilities of the Trimax Pegasus in your environment.
Pegasus⁄⁄ SR FEATURES.
The below features come as standard on all Pegasus S5 mowers:
LONG GRASS PERFORMANCE
Designed to mow grass up to 500mm high (depending on conditions) with a cut height range of 20 – 180mm.
SINGLE ROLLER

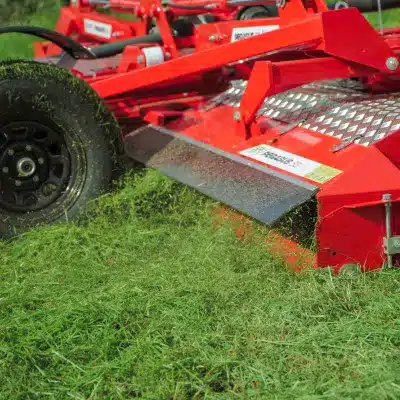

Replacing the front roller with castor wheels allows more grass into the cutting chamber, resulting in a clean cut in long grass.
LOW MAINTENANCE
With zero daily maintenance required, we’ve reduced grease points by 50% and annual grease consumption by 80%.
IMPACT PROTECTION
The outrigger arms and side channel leading edges have been redesigned for increased impact protection.
TITAN ROLLER BEARING SYSTEM
The Trimax Titan roller bearing system is maintenance-free, requiring no regular greasing, and provides excellent retention.
SUSPENSION
The new Pegasus S5 Flexiride Torque Suspension System is designed for increased strength and smoother travel at highway speeds.
ROBUST CHASSIS
The Pegasus S5 chassis has a brand-new design to increase strength while staying light on turf.
NEW LARGER WHEELS
Larger wheels help distribute the weight of the Pegasus S5 for 20% less ground pressure.
QUIKLIFT
Enables mower decks to be raised without disengaging the PTO to traverse driveways, footpaths and pavements.
STEADFAST SPINDLES
Trimax SteadFast sealed spindles require no greasing or regular maintenance.
FULL-WIDTH ROLLERS
Full-width rear roller follows contours and provides excellent anti-scalp protection.
AUTO BELT TENSIONING
Improves drive to the spindles without requiring manual belt adjustments.
WHEELS RUN ON CUT GRASS
The rear deck is located between the transport wheels, so the grass is not flattened prior to mowing.
LAZERBLADEZ
Achieves a superior cut and finish and is more cost-efficient than cylinder reels or solid blade beams.
BELT CAVITY DUAL WASH FLAPS
Provides easy access for removal of grass and drainage of water from belt cavities.
3 YEAR WARRANTY
We build mowers that last, and they’re supported with a 3-year industry-leading warranty.
IN-CAB UNLOCK SYSTEM
Unlock the mower side decks’ transport lock from the convenience of the tractor seat using a release rope.
Pegasus⁄⁄ SR Options.
5 YEAR WARRANTY
For ultimate peace of mind, customers can increase the standard three-year warranty up to a five-year extended warranty.
ELEC BRAKES WITH BREAKAWAY
Reduces braking force required by the tractor.
ELECTRIC UNLOCK
Unlocks decks electronically from the tractor seat.
SERVICE KIT
Full set of blades, bolts and belts for a quick routine service.
TURF MUDGUARDS
Available for both road tyres and turf tyres.
QUATTRO BLADE SYSTEM
Four blades (flat, upturned or mixed) per spindle for a finer cut.
TOOLBOX & MOUNT
Mounts a toolbox to the mower chassis.
TURF TYRES
Distributes mower weight for less ground disturbance.
SPARE ROAD TYRE & MOUNT
Mounts a spare wheel to the rear mowing deck.
TOOLBAG
Breaker bar, 24mm socket and extension bar for cut height adjustments.
SPECIFICATIONS.
|
Cutting Width |
4.94m (16′ 2″) |
No. of Blade Spindles |
9 |
|
Overall Width |
5.1m (16′ 9″) |
Approx. Weight |
2200kg (4895lbs) |
|

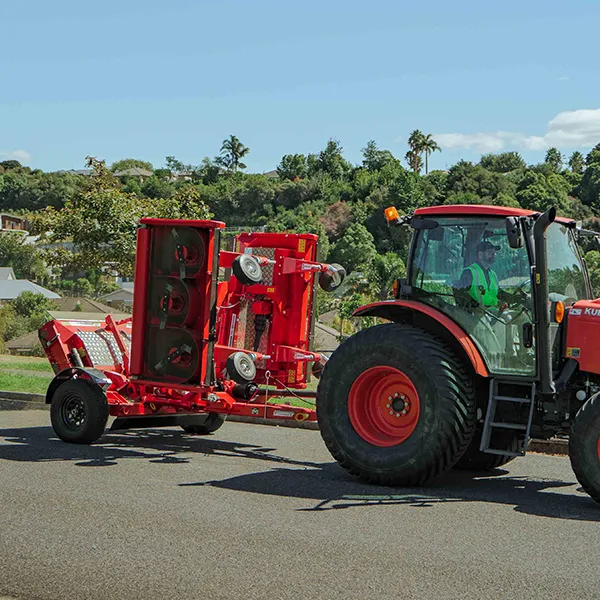

Width (Transport Mode) |
2.53m (8′ 3 3/4″) |
Minimum PTO Output * |
50 hp |
|
Overall Length |
4.65m (15′ 3″) |
Transport Height |
2.62m (8′ 7″) |
|
Cut Height Range |
20 – 180mm (7/8″ – 7 1/7″) |
Workrate (4mph) |
7.84 acres/hr |
|
Cutting Width |
6.09m (19′ 11″) |
No. of Blade Spindles |
11 |
|
Overall Width |
6.25m (20′ 6″) |
Approx. Weight |
2440 kg (5380 lbs) |
|
Width (Transport Mode) |
2.53m (8′ 3 3/4″) |
Minimum PTO Output * |
55 hp |
|
Overall Length |
4.65m (15′ 3″) |
Transport Height |
3.2m (10′ 6″) |
|
Cut Height Range |
20 – 180mm (7/8″ – 7 1/7″) |
Workrate (4mph) |
9.66 acres/hr |
|
Cutting Width |
7.23m (23′ 9″) |
No. of Blade Spindles |
13 |
|
Overall Width |
7.39m (24′ 3″) |
Approx. Weight |
2660kg (5865lbs) |
|
Width (Transport Mode) |
2.53m (8′ 3 3/4″) |
Minimum PTO Output * |
60 hp |
|
Overall Length |
4.65m (15′ 3″) |
Transport Height |
3.8m (12′ 6″) |
|
Cut Height Range |
20 – 180mm (7/8″ – 7 1/7″) |
Workrate (4mph) |
11.52 acres/hr |
