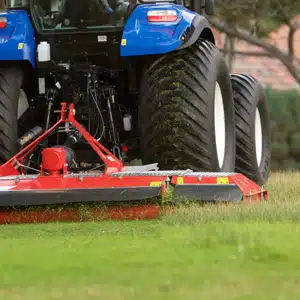

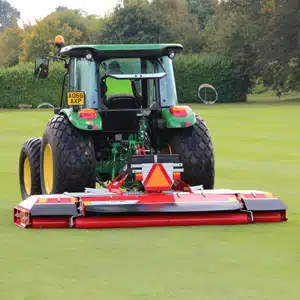

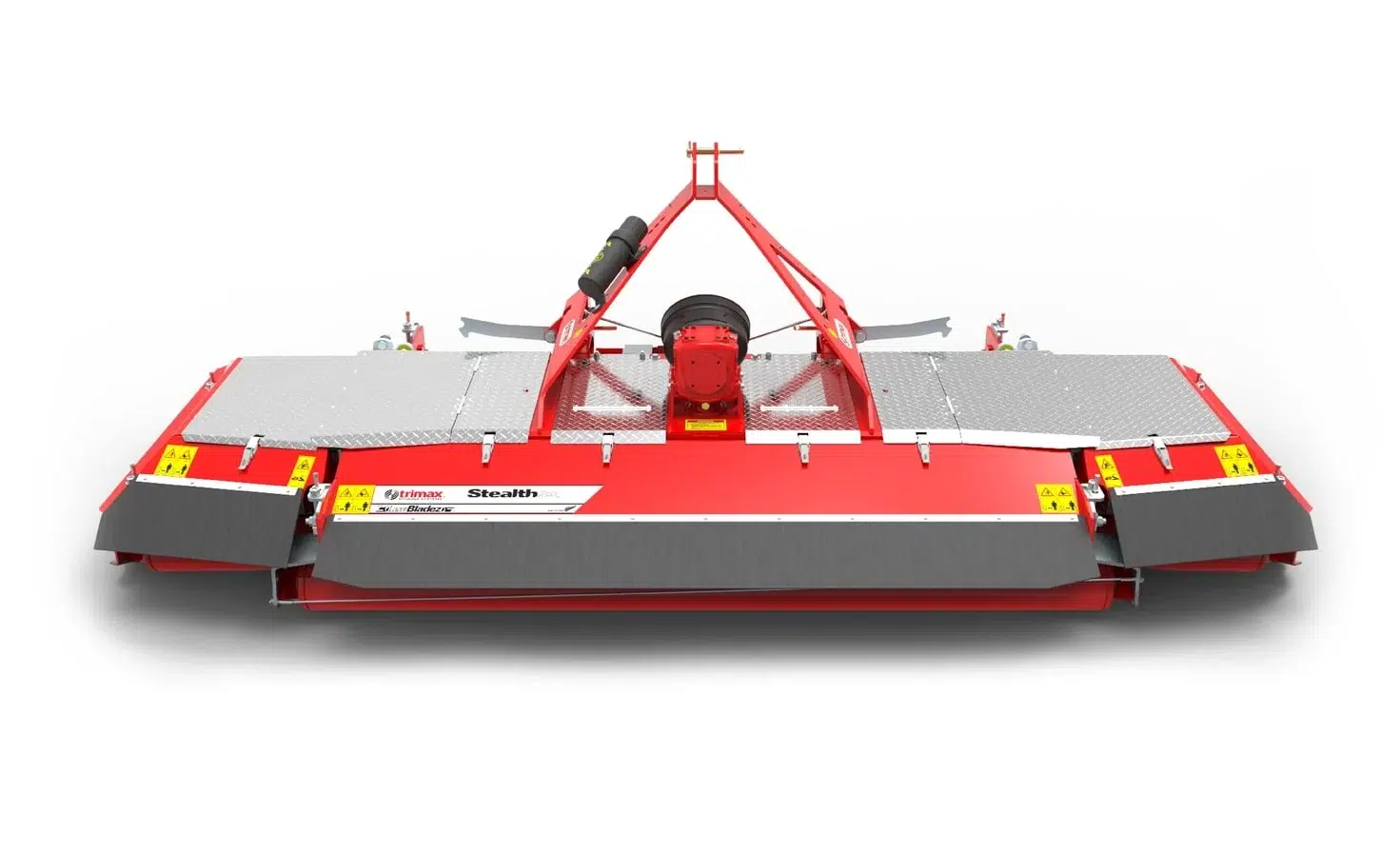

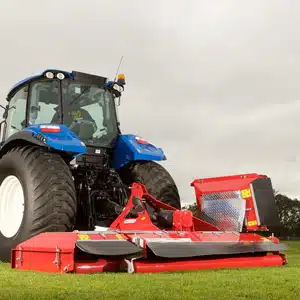

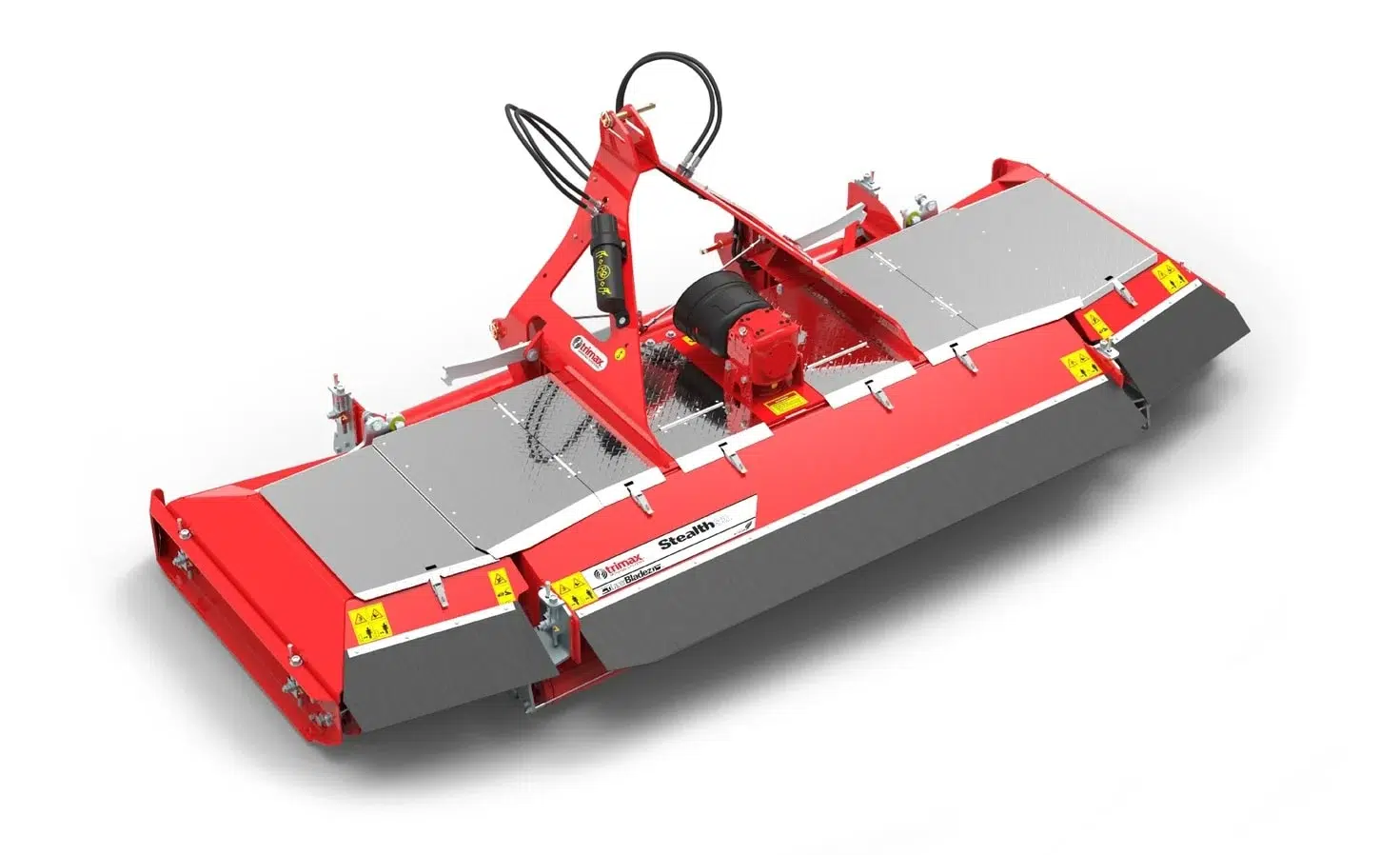

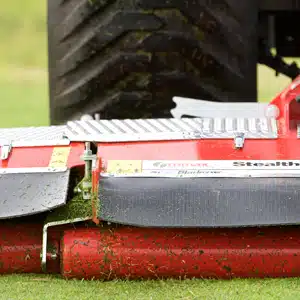

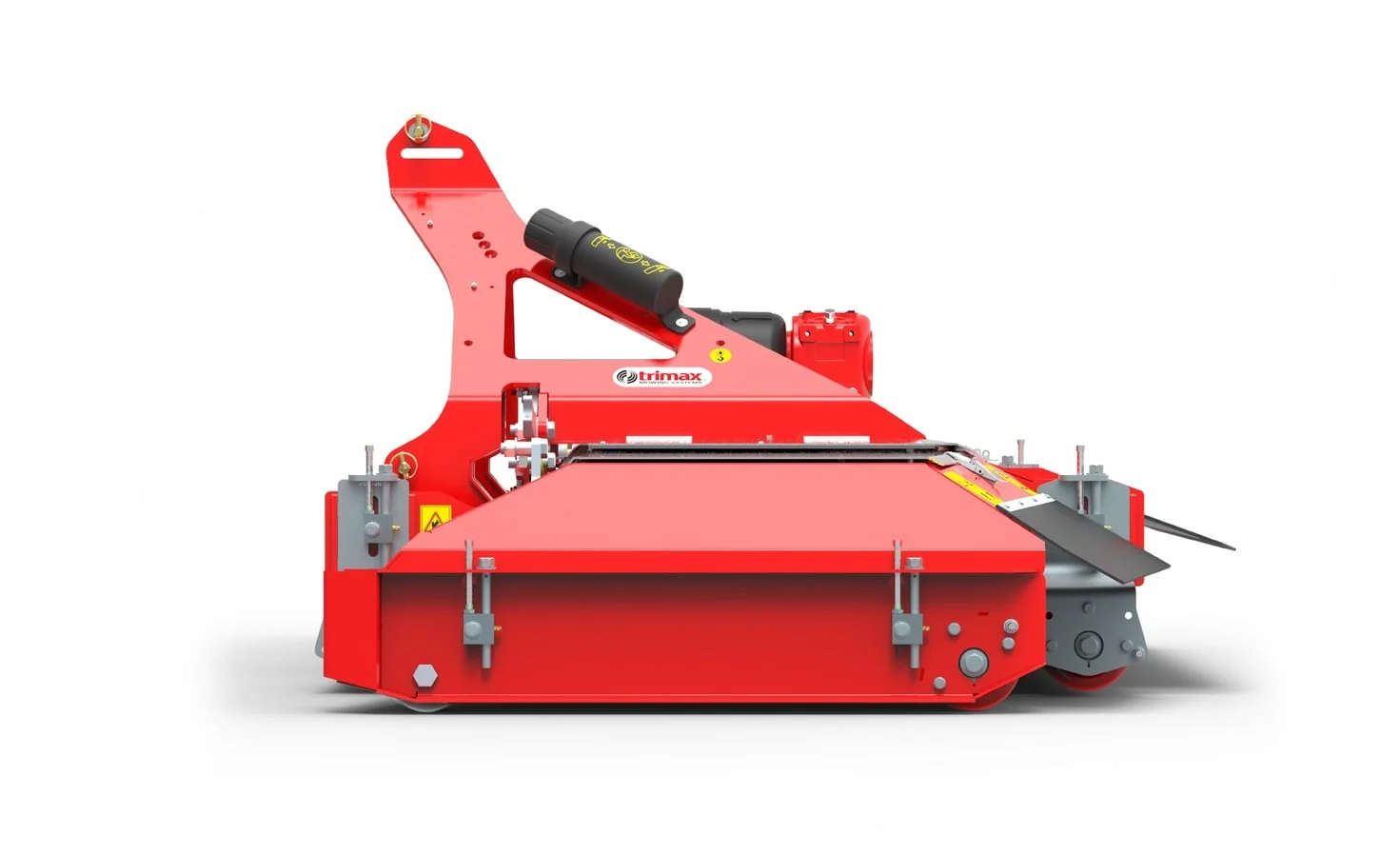

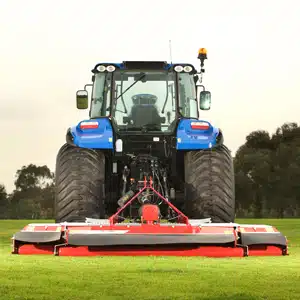

Stealth ⁄⁄ S3
The Stealth Series 3 has a higher quality of cut, operates in a wider range of conditions, is safer, more robust, and takes less time to maintain than any previous Stealth.
THE MOST VERSATILE STEALTH EVER.
Introducing the Stealth Series 3. Designed to have a higher quality of cut, operate in a wider range of conditions, be safer, more robust, easier to operate, and take less time to maintain than any previous Stealth.

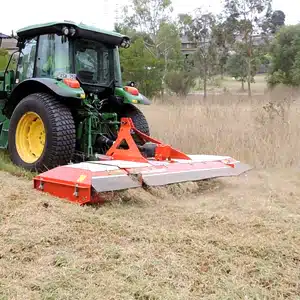

Backed by 30 years’ experience in the market, the concept of Stealth S3 was born from demand from our customers; for a mower that was more versatile in terms of long grass performance, yet user-friendly for both the operator and the workshop.
Designed by you and built by us, Trimax Stealth is backed by an industry-leading three-year warranty, UK parts supply, and technical support. We believe the Stealth S3 to be the best linkage wing mower for passive and active turf in the market.
Ask us how Stealth S3 can transform your environment.
STEALTH⁄⁄ S3 FEATURES.
The below features come as standard on all Stealth S3 mowers:
EASY TO CLEAN
The improved belt chamber design and front openings allow grass to easily be washed or blown out.

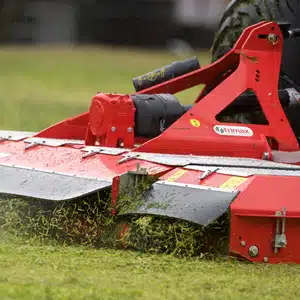

MOST VERSATILE STEALTH
Refined cutting chamber and baffle design for improved cut quality and spread in all conditions.
STAND ON COVERS
Provides safe and easy access to the rear of the tractor when coupling the mower.

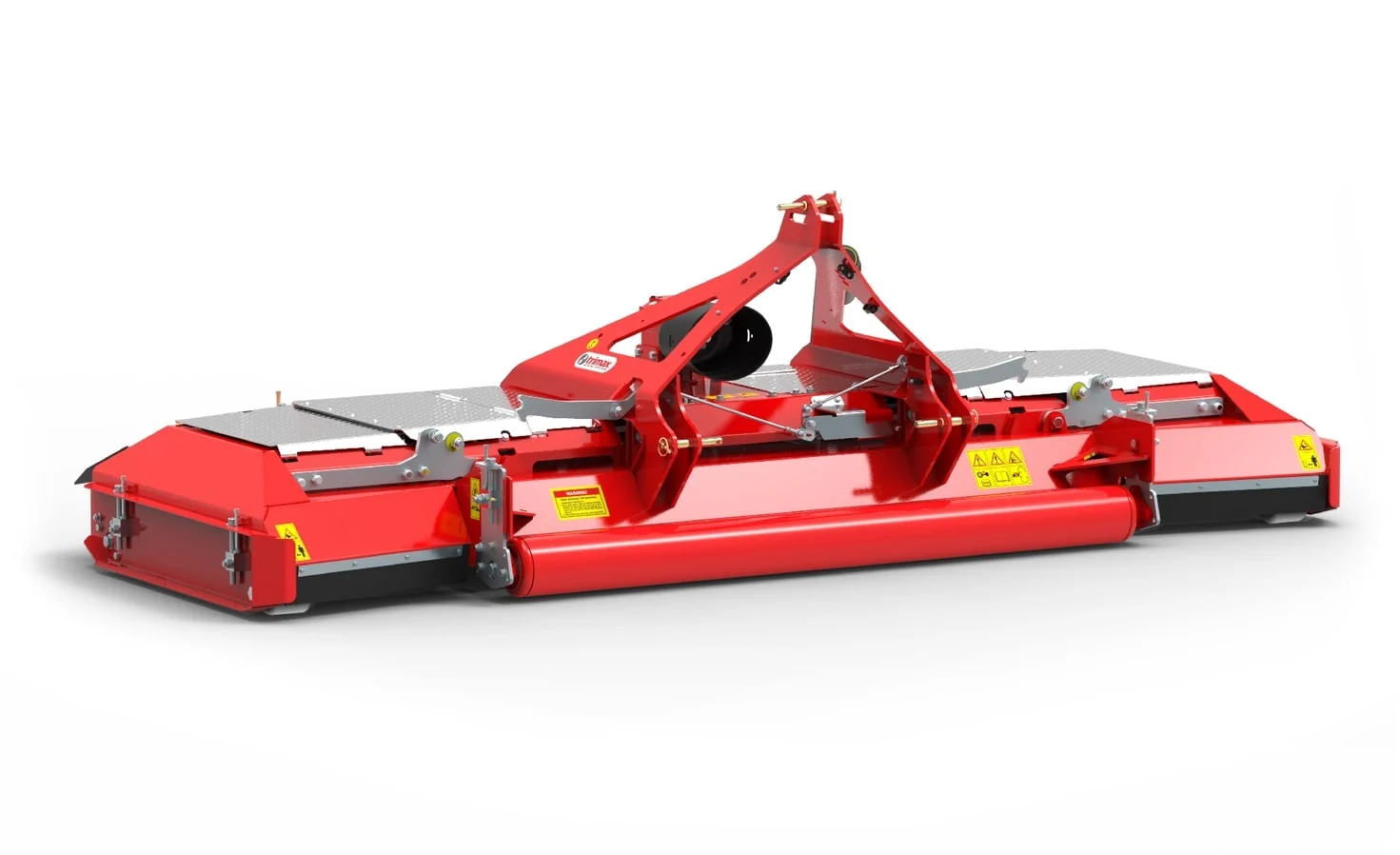

LOCTEK ROLLER BEARING RETENTION SYSTEM
A stubless roller retention system for vastly improved alignment, bearing life and replacement ease.

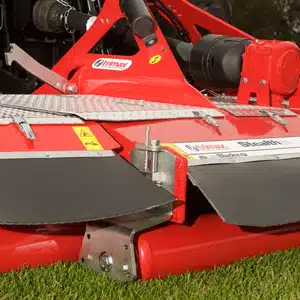

EASY HEIGHT ADJUSTMENT
Clearly displayed stainless steel height indicators allow for the easy adjustment of cut heights without having to raise or lower the wings.
LAZERBLADEZ
Achieves a superior cut and finish and are more cost efficient than cylinder reels or solid blade beams.
3 YEAR WARRANTY
We build mowers that last and they’re supported with a 3 year industry leading warranty.
REDUCED MAINTENANCE
We’ve eliminated the need to grease pivot points and significantly reduced spindle maintenance.
IN-CAB UNLOCK SYSTEM
Unlock the mower wings’ transport lock from the convenience of the tractor seat using the tractor’s hydraulic control lever.
STEALTH⁄⁄ S3 Options.
QUATTRO BLADE SYSTEM
Four blades (flat, upturned or mixed) per spindle for a finer cut.
TOOLBAG
Includes a breaker bar, 24mm socket & an extension bar. Everything you need for changing the height of the cut out in the field.
ROLLER SCRAPERS
Trimax Helical Scrapers operate with reduced tension but apply a constant pressure across the roller to assist with the cleaning of debris.
SERVICE KIT
Full set of blades, bolts and belts for a quick routine service.
STORAGE AND LIGHTING KIT
Includes storage toolbox, mounting bracket, LED road lights, and safety triangle for commercial use.
5 YEAR WARRANTY
For ultimate peace of mind, customers can increase the standard three-year warranty up to a five-year extended warranty.
SPECIFICATIONS.
|
Cutting Width |
3.4m (11′ 2″) (134″) |
Workrate (4mph) |
5.41 acres/hr |
|
Overall Width |
3.55m (11′ 8″) |
No. of Blade Spindles |
5 |
|
Overall Length |
1.623m (5’4″) |
Approx Weight |
940 kg (2070lbs) |
|
Width (Transport Mode) |
2.42m (7′ 11″) |
Minimum PTO Output* |
60hp |
|
Height (Transport Mode) |
1.21m (3′ 11 1/2″) |
Warranty (Years) |
3 |
|
Cut Height Range |
10-90 mm (⅜” – 3 ½”) |
|
|
