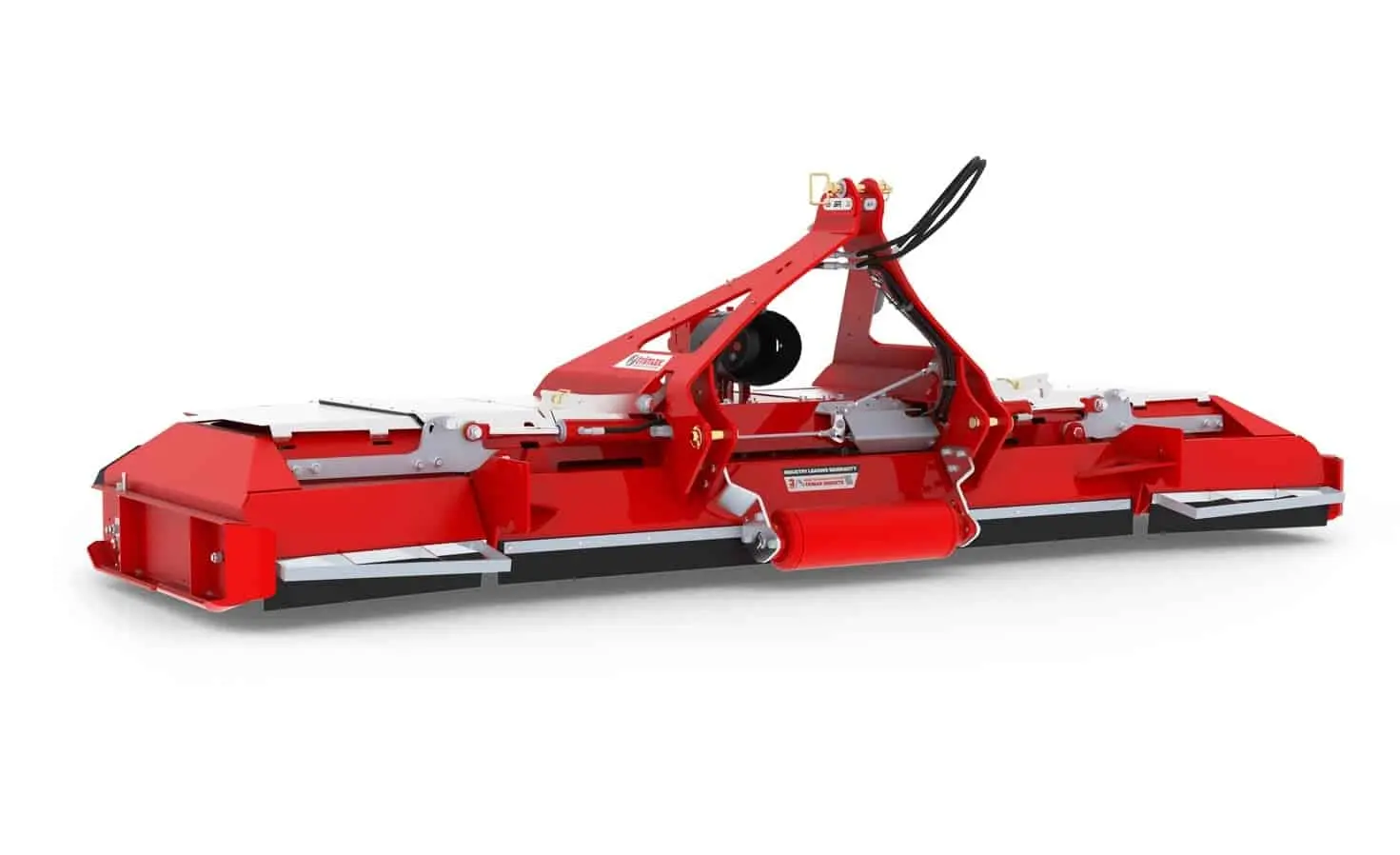

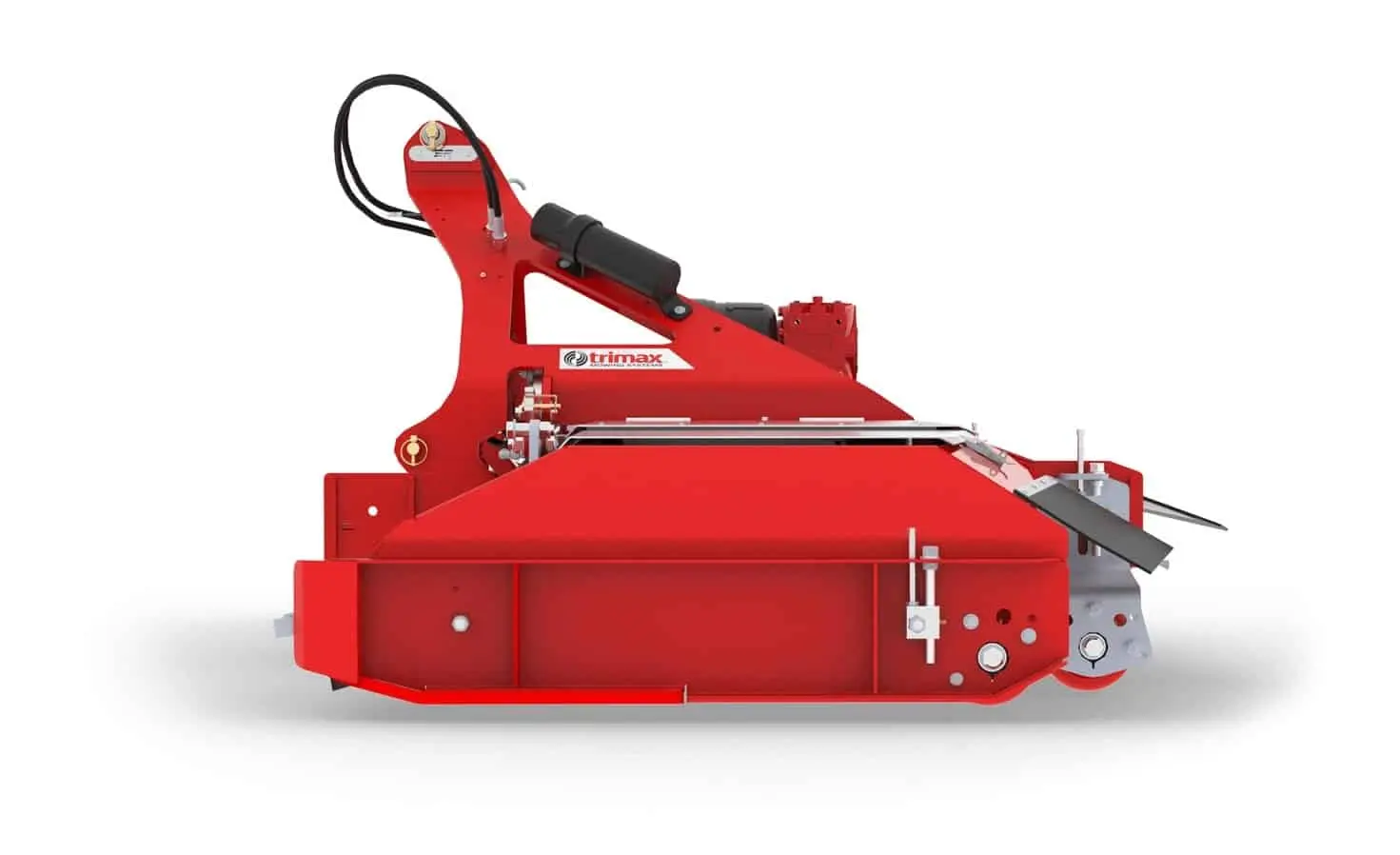

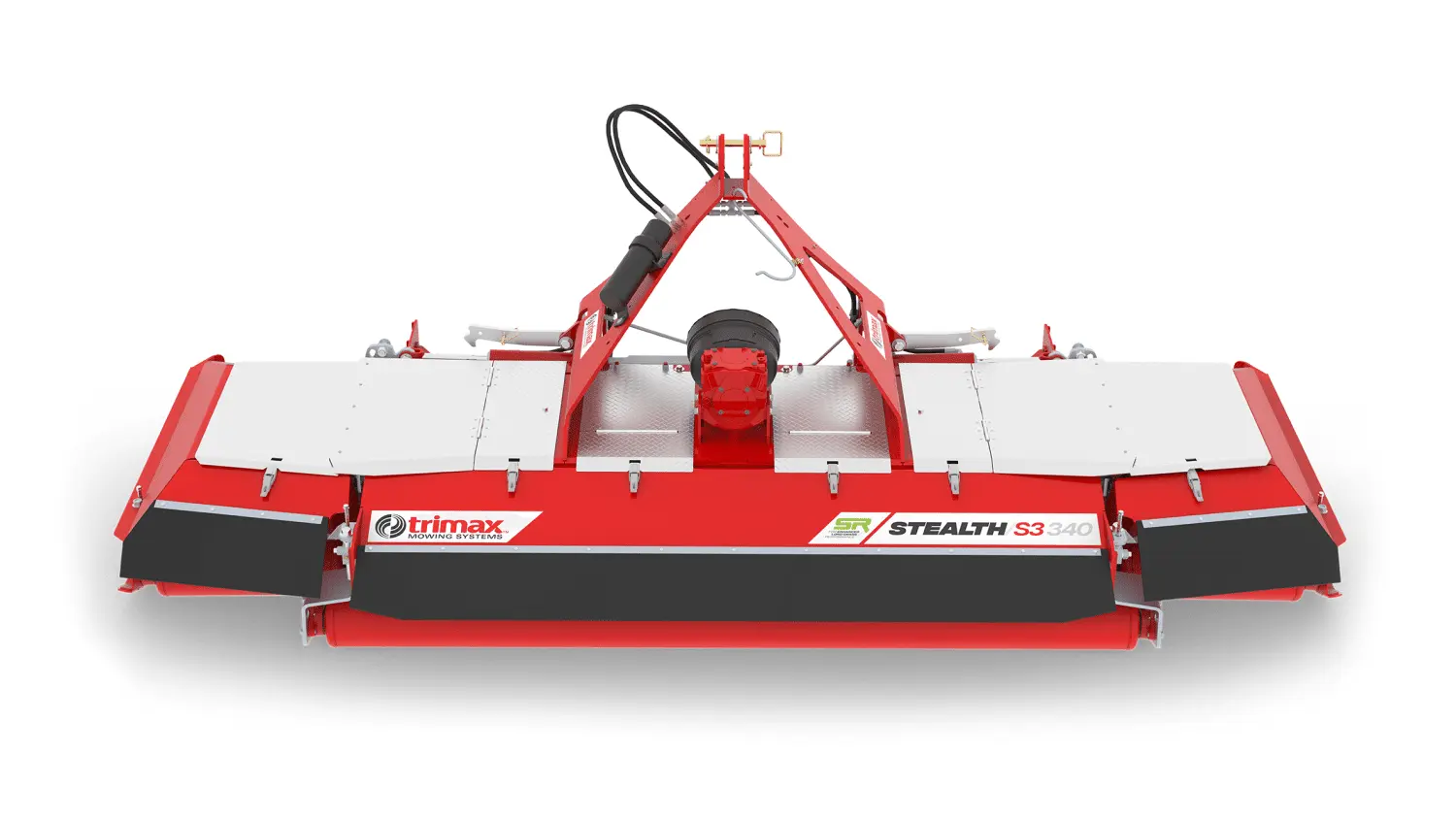

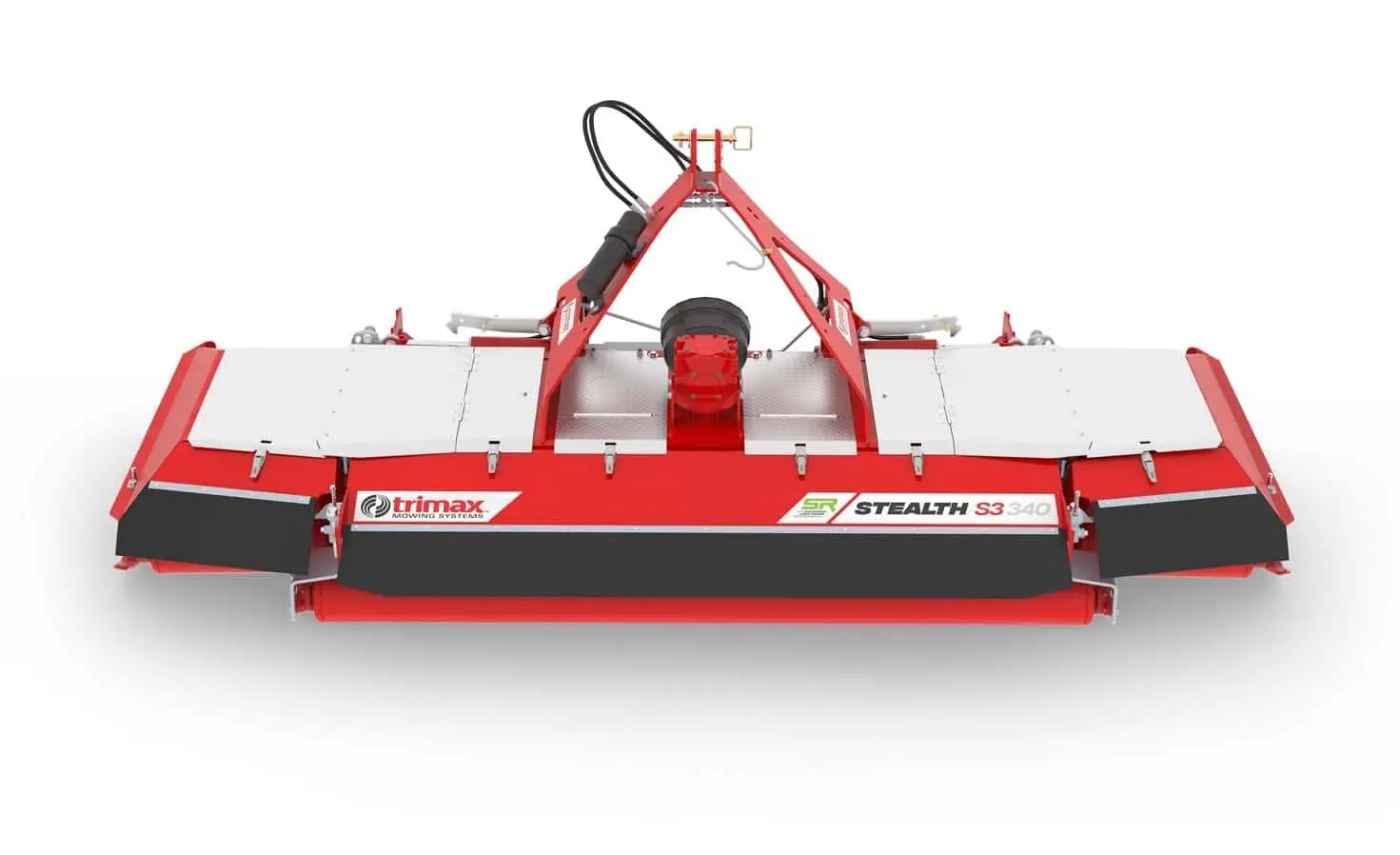

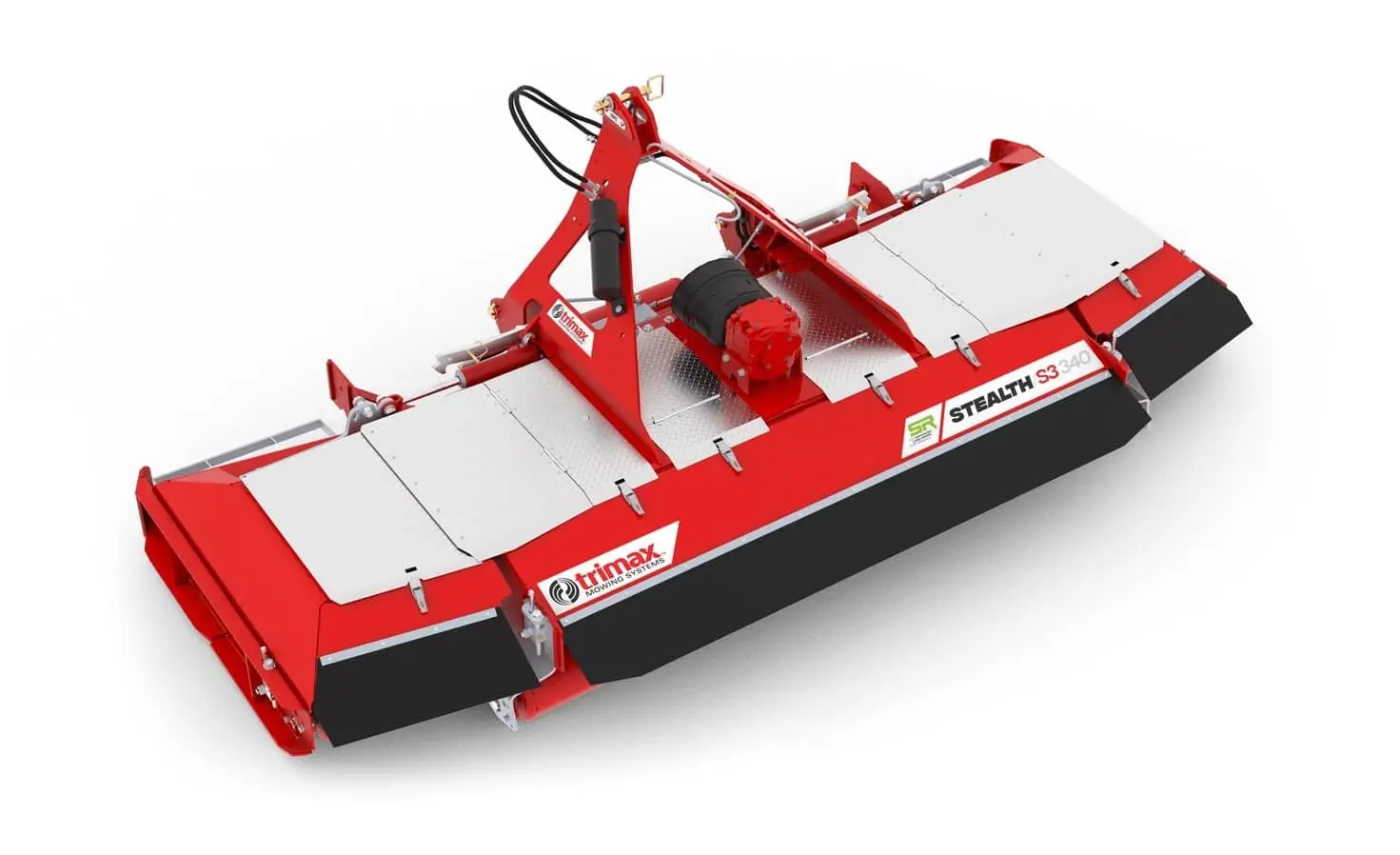

Stealth ⁄⁄ SR
The Stealth SR optimises the versatility and robustness of the Stealth Series 3 for improved performance in long-grass applications.
OPTIMUM LONG GRASS PERFORMANCE.

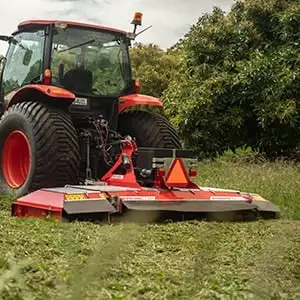

The Trimax Stealth SR builds on all the featured improvements from the Stealth Series 3 and optimises them for long grass performance. With the ability to deliver a quality cut in the grass up to 500 mm high, the Stealth SR is an ideal alternative to gear-driven wing mowers for spaces with longer cutting cycles.
We listened when our customers asked for a mower that could achieve the quality cut they expected from Trimax even in long grass applications. Backed by nearly 40 years of experience and innovation, we capitalized on the versatility and robustness of the Stealth Series 3 to develop the Stealth SR as a solution for long grass and open space management.
Trimax mowers are built to last, and the Stealth SR is no exception. Together with our factory-backed 3-year warranty – the longest on the market – our local parts supply and technical support are standing by to keep you mowing, even through your toughest conditions.
Ask us how Stealth SR can transform your environment.
STEALTH⁄⁄ SR FEATURES.
The below features come as standard on all Stealth SR mowers:

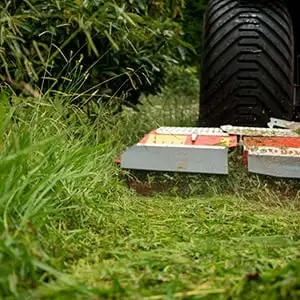

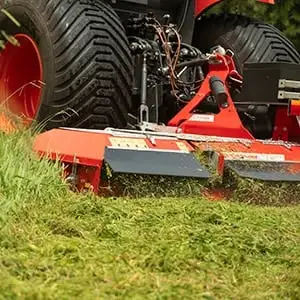

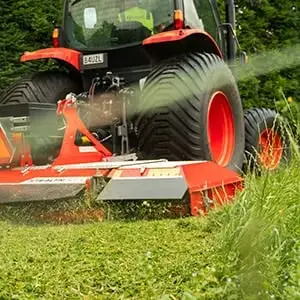

LONG GRASS PERFORMANCE
Designed to mow grass up to 500 mm high and achieve the quality cut you expect from Trimax.
ANTI-SCALP ROLLER
A raised front roller provides anti-scalp protection for your turf without impacting long grass performance.

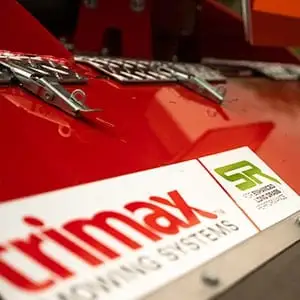

LAZERBLADEZ
Achieves a superior cut and finish and are more cost efficient than cylinder reels or solid blade beams.
LOCTEK ROLLER BEARING RETENTION SYSTEM
A stubless roller retention system for vastly improved alignment, bearing life and replacement ease.
EASY HEIGHT ADJUSTMENT
Clearly displayed stainless steel height indicators allow for the easy adjustment of cut heights without having to raise or lower the wings.
EASY TO CLEAN
The improved belt chamber design and front openings allow grass to easily be washed or blown out.
LOW MAINTENANCE
We’ve eliminated the need to grease pivot points and significantly reduced spindle maintenance.
3 YEAR WARRANTY
We build mowers that last and they’re supported with a 3 year industry leading warranty.
STAND ON COVERS
Provides safe and easy access to the rear of the tractor when coupling the mower.
IN-CAB UNLOCK SYSTEM
Unlock the mower wings’ transport lock from the convenience of the tractor seat using the tractor’s hydraulic control lever.
STEALTH⁄⁄ SR Options.
LIGHTING KIT WITH STORAGE BRACKET
LED road lights, safety triangle, and bracket for storage box.
QUATTRO BLADE SYSTEM
Four blades (flat, upturned or mixed) per spindle for a finer cut.
SERVICE KIT
Full set of blades, bolts and belts for a quick routine service.
STORAGE BOX
Easy access to spare parts and tools.
TOOLBAG
Includes a breaker bar, 24mm socket & an extension bar. Everything you need for changing the height of the cut out in the field.
5 YEAR WARRANTY
For ultimate peace of mind, customers can increase the standard three-year warranty up to a five-year extended warranty.
SPECIFICATIONS.
|
Cutting Width |
3.4m (11′ 2″) |
Workrate (4mph) |
5.41 acres/hr |
|
Overall Width |
3.55m (11′ 8″) |
No. of Blade Spindles |
5 |
|
Overall Length |
1.63m (5′ 4″) |
Approx Weight |
900kg (1984lbs) |
|
Width (Transport Mode) |
2.42m (7′ 11″) |
Minimum PTO Output* |
60 hp |
|
Height (Transport Mode) |
1.21m (3′ 11½”) |
Warranty (Years) |
3 |
|
Cut Height Range |
40 – 90mm (1½” – 3½”) |
|
|
