X-WAM ⁄⁄ S5 ZR

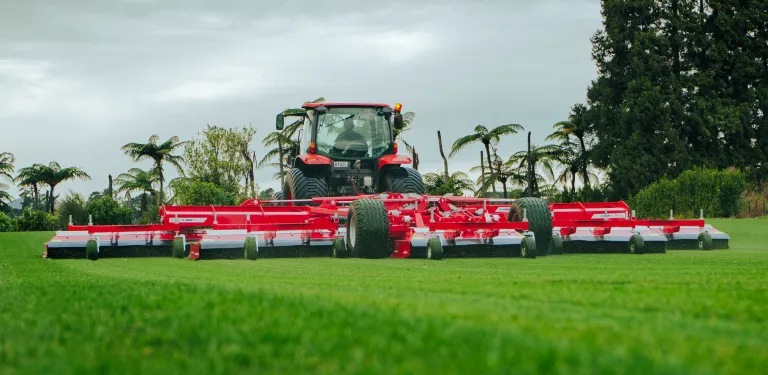

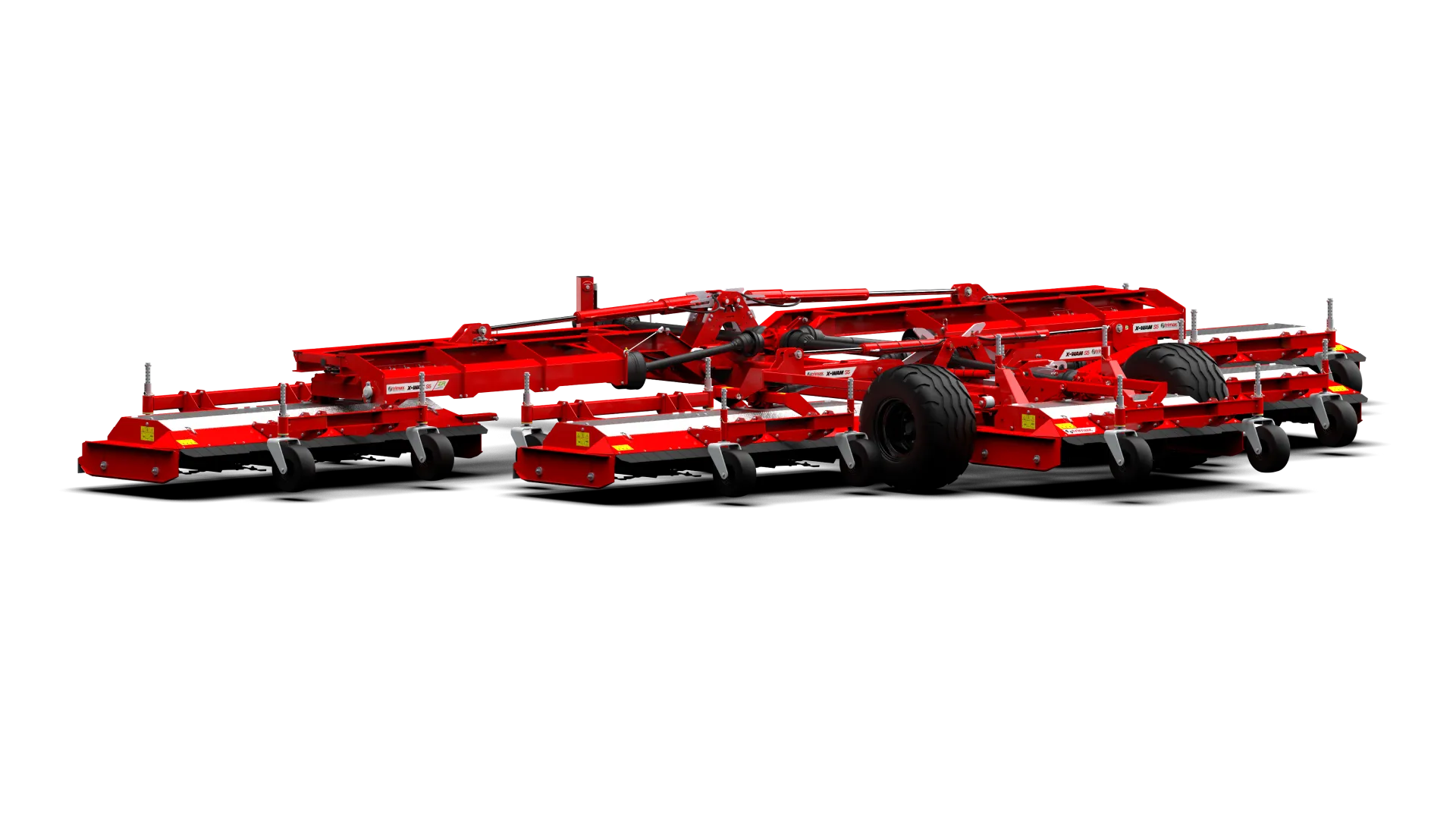

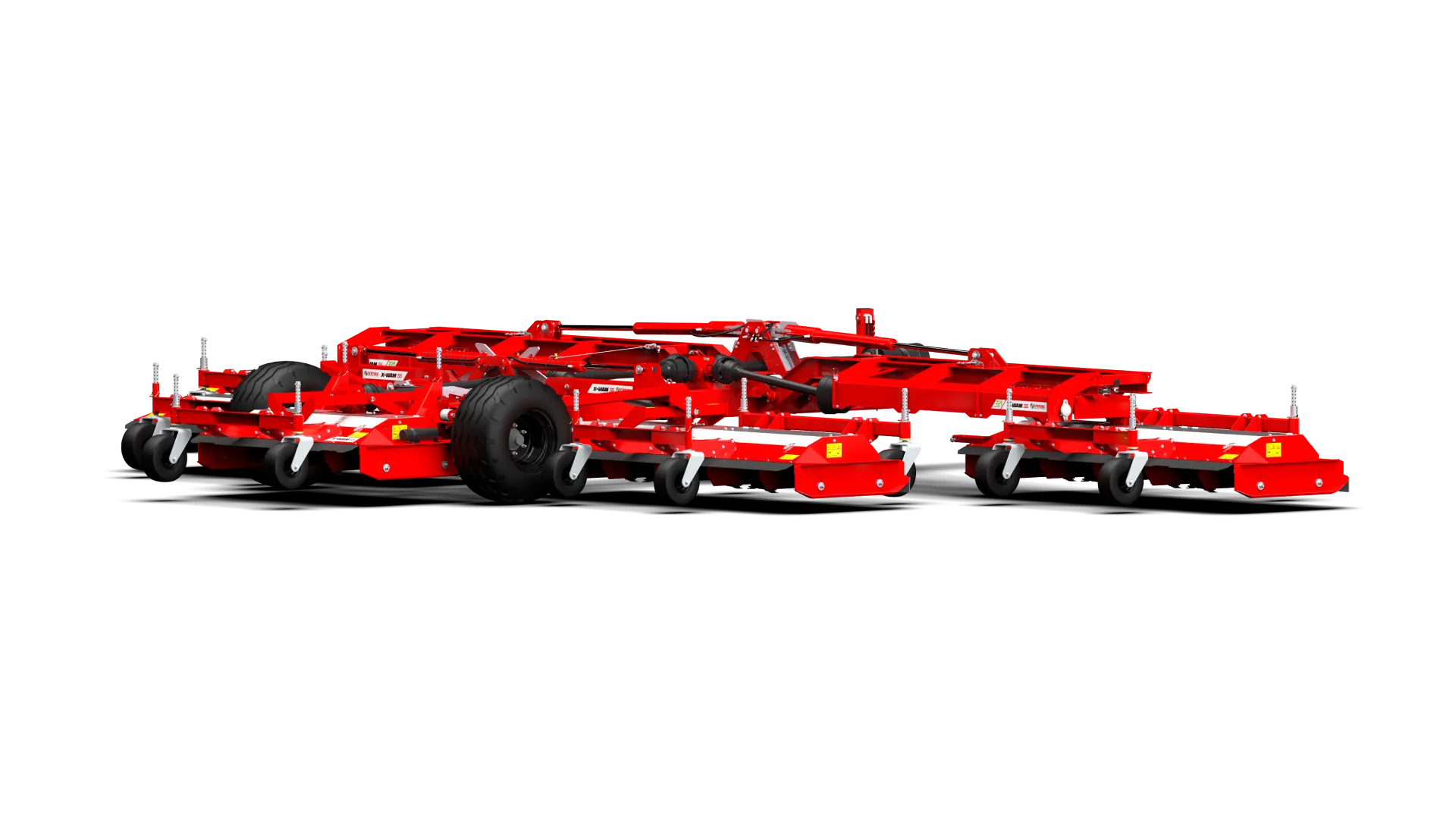

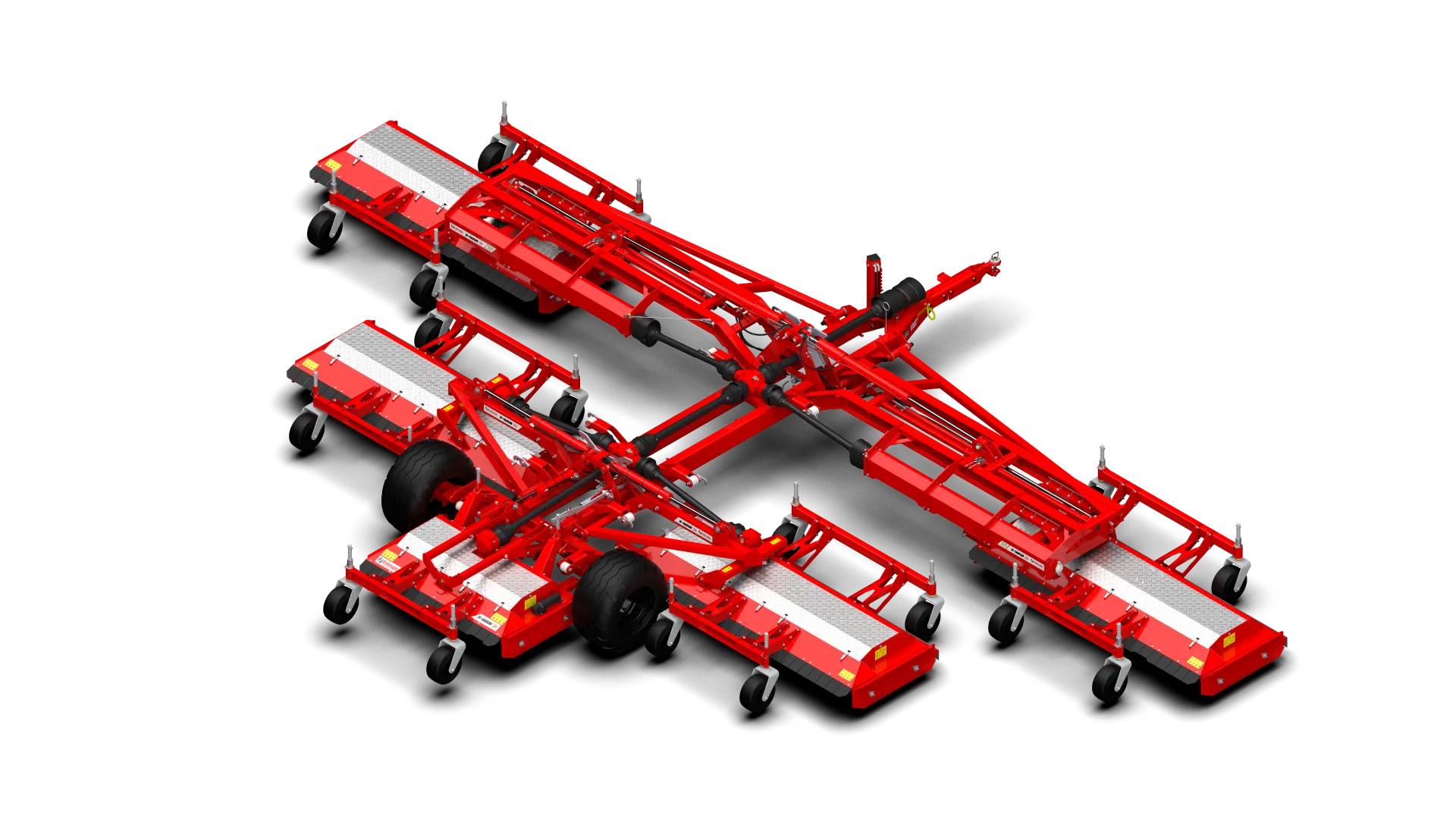

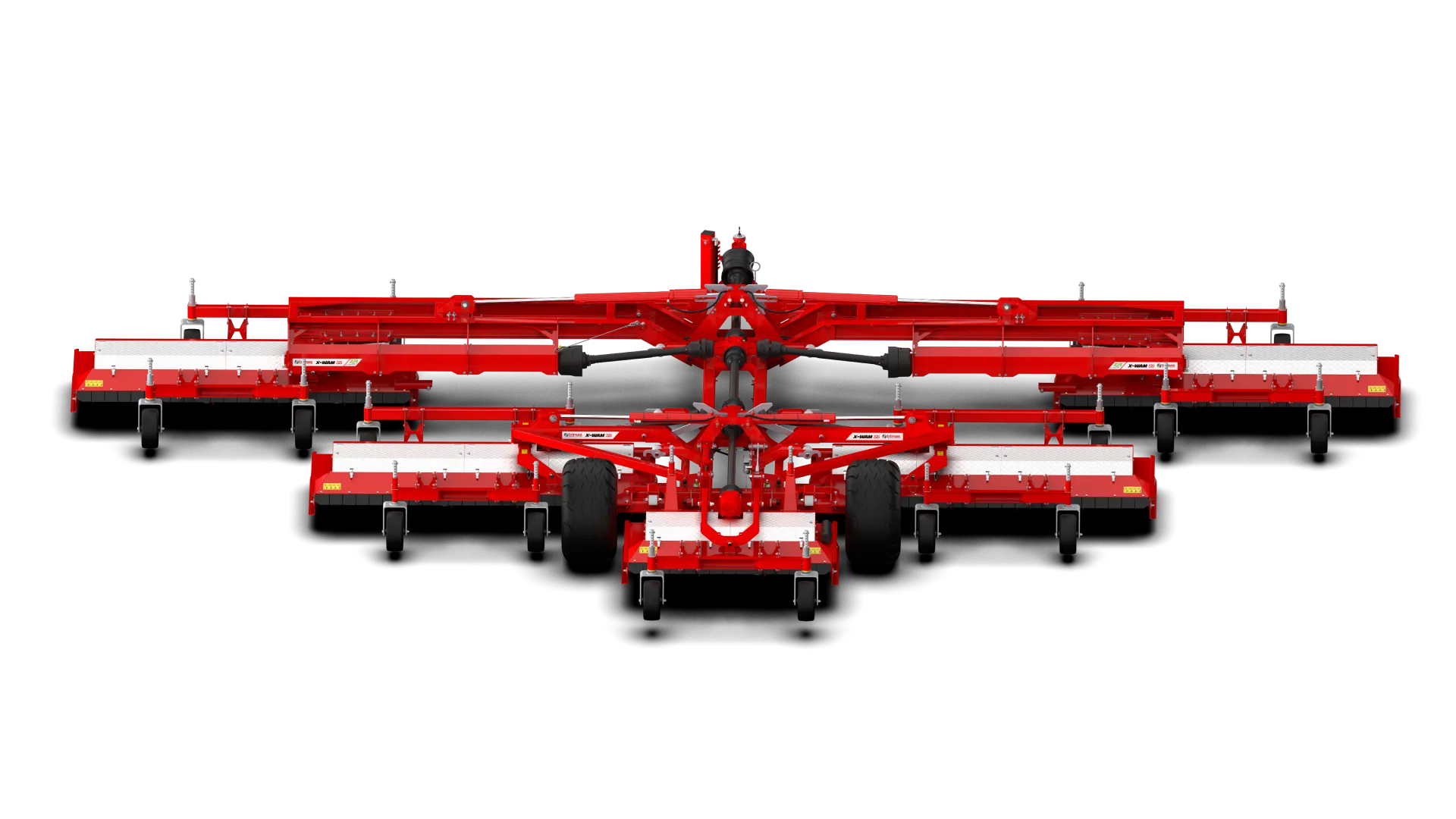

The X-WAM S5 ZR is Trimax’s largest castor mower, purpose built for wide area turf management.
The King of Wide Area Mowing.
The Trimax X-WAM S5 ZR has an 11.5m cutting width, 1.2m wider than its predecessor. Productivity is increased by 11%, saving time and lowering operational costs.
Mowing decks travel on front and rear castors, allowing long grass to be cut without being rolled first, perfect for delicate grasses and regular maintenance mowing. Maintenance-free spindles and castor wheels result in zero daily maintenance requirements – ensuring reliability and further reducing operational costs.
Built on a fully integrated chassis, the X-WAM S5 ZR is 50% stronger than its predecessor, increasing machine life in the toughest conditions. QuikLIFT is now included, reducing the risk of headland damage whilst turning. Its compact transportation design allows for safe and easy relocation between fields whilst its variable cutting width allows you to change mow widths when needed.
Backed by Trimax’s industry leading 3 year warranty, the X-WAM S5 ZR is the ultimate solution for wide area turf management.
X-WAM ⁄⁄ S5 ZR Features.
The below features come as standard on all X-WAM S5 ZR mowers:
Front & Rear Castors
Mowing decks travel on front and rear castors, allowing long grass to be cut without being rolled first. Castors are offset to minimise compaction.
Optimal Height of Cut Range
The front and rear castors enable a height of cut range of 20mm – 180mm, making it suitable for use across a variety of grass lengths.
Ease of Use
Stand-on covers, hydraulic parking jack, and electric unlock simplify operation.
Fully Integrated Chassis
The X-WAM has a purpose built fully integrated chassis which has increased durability by 50% compared to the previous model.
Quiklift
Enables mower decks to be raised without disengaging the PTO to reduce turf damage when turning.
Ultimate Contour Following
The X-WAM features multiple small, robust decks for superior cut quality in undulating conditions.
Wheels Run on Cut Grass
The rear deck is located between the transport wheels, so the grass is not flattened prior to mowing.
Zero Daily Maintenance
Spindles, castor wheels and auto-belt tensioning system are maintenance-free.
LazerBladez
Achieves a superior cut and finish and are more cost efficient than cylinder reels or solid blade beams.
Belt Cavity Dual Wash Flaps
Provides easy access for removal of grass and drainage of water from belt cavities.
Turf Tyres
The chassis tyres are 15% wider than the previous model, distributing weight evenly across the turf.
Variable Cutting Width
With a variable cutting width between 7.2m and 11.5m you can adjust your mow widths quickly when required.

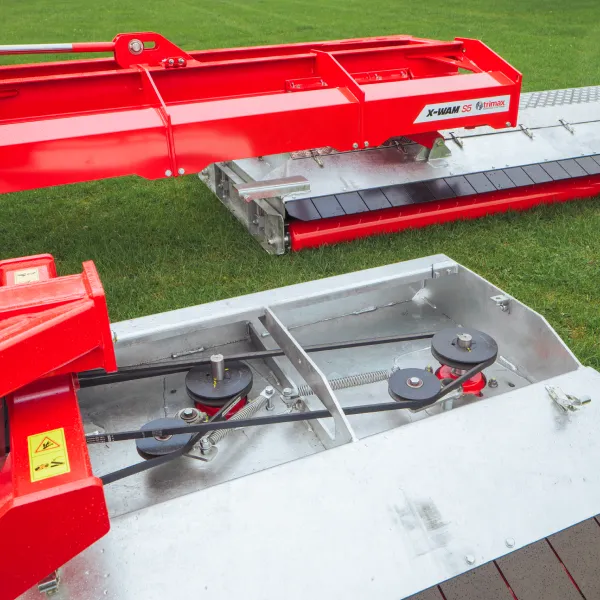

Automatic Belt Tensioning
Automatic belt tensioners eliminate the need for belt adjustments and provides consistent drive to the spindles and blades.
3 Year Warranty
We build mowers that last and we back them up with a 3 year industry leading warranty.
X-WAM ⁄⁄ S5 ZR Options.
Quattro Blade System
This system adds 2 more blades to each spindle (2 flat & 2 upturned) for a finer cut.
Nexablades
Scientifically designed for high-end turf giving a superior cut and spread when it matters most.
Galvanised Surface Coating
Protects against corrosion in harsh conditions.
SPECIFICATIONS.
|
Cutting Width |
11.5m (37′ 7″) |
No. of Blade Spindles |
23 |
|
Overall Width |
11.65m (38′ 3″) |
Approx. Weight |
5470kg (12,060lbs) |
|
Transport Width |
2.96m (9′ 8 1/2″) |
Minimum PTO Output |
90 hp |
|
Transport Height |
4.1m (13′ 5′) |
Warranty (Years) |
3 |
|
Overall Length |
7.36m (24′ 1″) |
Workrate (4 mph) |
18.3 acres/hr |
|
Cut Height Range |
20mm – 180mm (3/4″ – 7 1/2″) |
|
|
